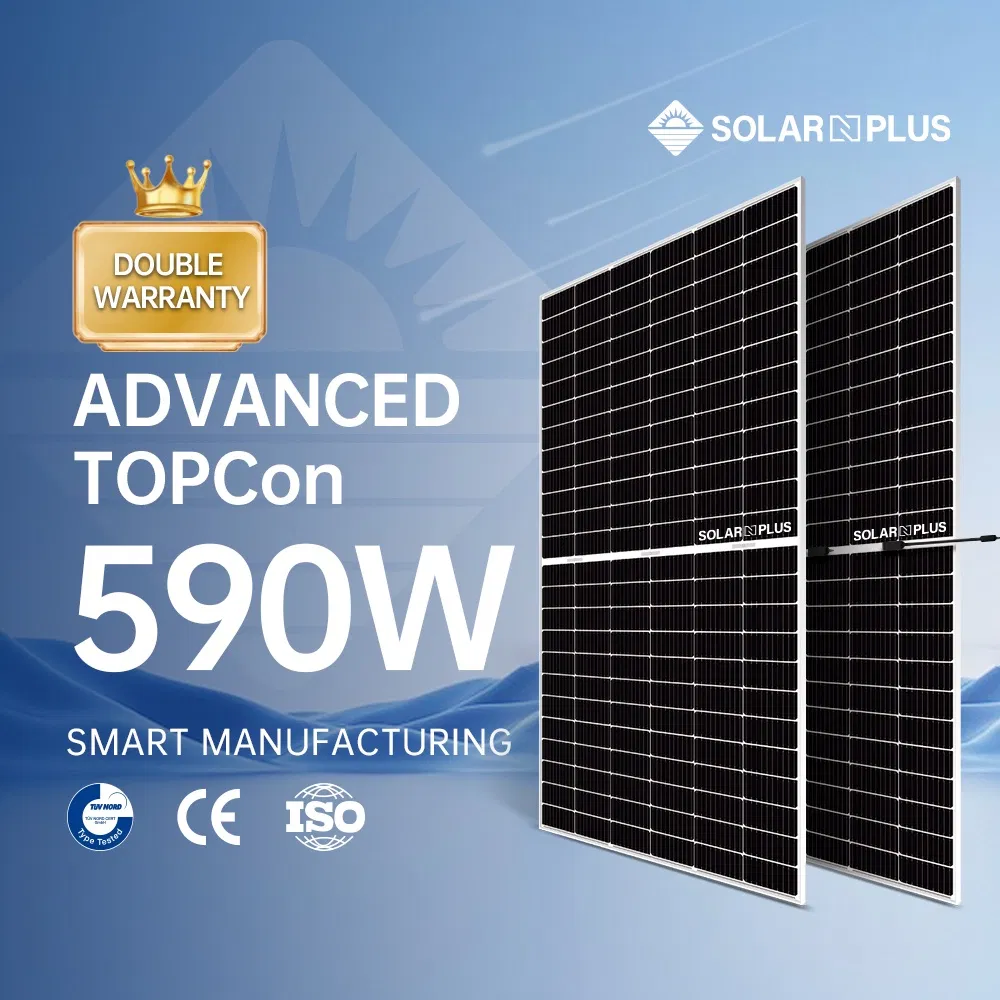

Solarnplus High Quality Bifacial Topcon Soalr Panel 144 Series 580W 585W 590W 595W 600W CE TUV for Utility
Product Description
📋
Overview & Basic Info
Model NO.
SP-N16-144HG570-600W
Number of Cells
144 PCS
Application
Utility and Large-Scale Project
Condition
New
Certification
ISO, CE, TUV, IEC, Bis, Jepa, Sec, Inmentro, CQC
Material
Polycrystalline Silicon
Weight
31.5kg
System Voltage
DC1500V (IEC)
Series Fuse Rating
25A
Mechanical Load
5400PA/2400PA
Specification
2278*1134*30mm
Production Capacity
10gw / Year
☀️

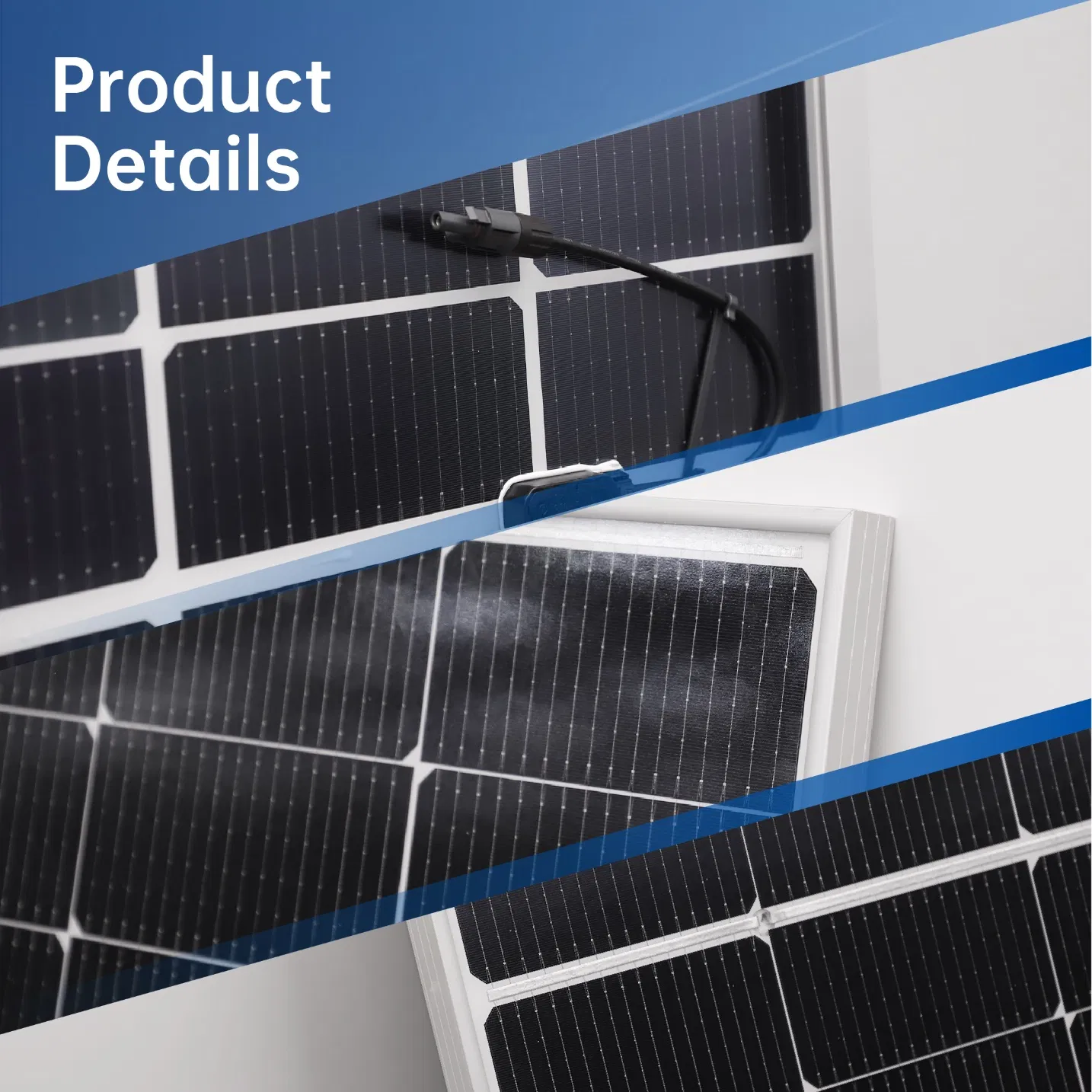

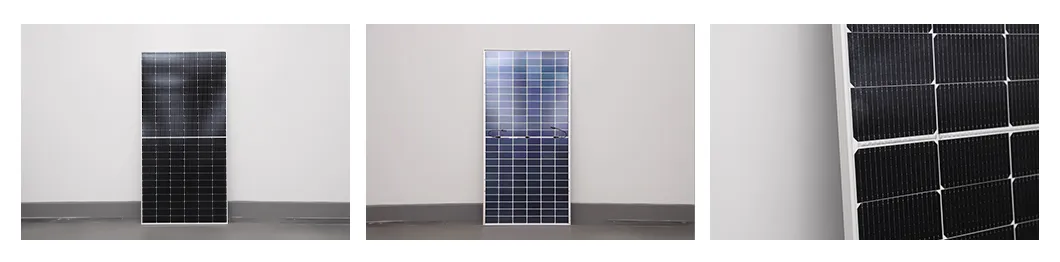

Product Description

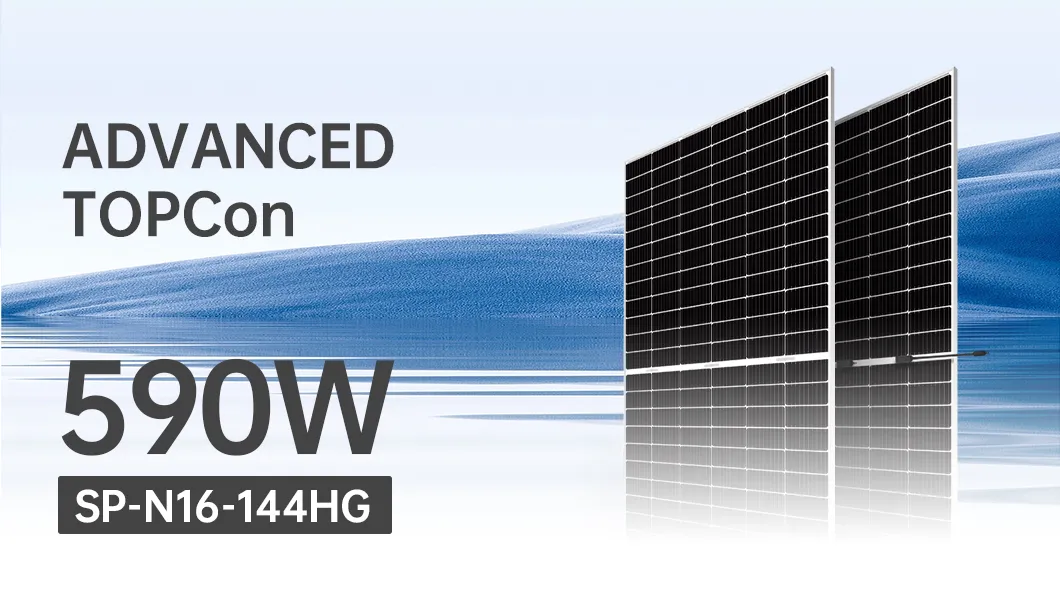

High quality bifacial TOPCon solar module 144 series 580W 585W 590W 595W 600W. This series module features TOPCon 144 cells, with a maximum power output of 600W and an impressive efficiency rate of up to 23.2%. These modules exhibit minimal degradation and a low temperature coefficient, ensuring consistent high power production in any environment.
⚡
Product Parameters
| Electrical Characteristics (STC) | ||||||
|---|---|---|---|---|---|---|
| Maximum Power (Pm) | Unit | 580 | 585 | 590 | 595 | 600 |
| Power Tolerance | W | 0~+5 | ||||
| Maximum Power Voltage (Vm) | V | 45.15 | 45.35 | 45.55 | 45.75 | 45.95 |
| Maximum Power Current (Im) | A | 12.85 | 12.90 | 12.96 | 13.01 | 13.06 |
| Open Circuit Voltage (Voc) | V | 52.6 | 52.8 | 53.0 | 53.2 | 53.4 |
| Short Circuit Current (Isc) | A | 13.57 | 13.62 | 13.67 | 13.72 | 13.77 |
| Module Efficiency | % | 22.5 | 22.7 | 22.8 | 23.0 | 23.2 |
| Electrical Characteristics (NMOT) | ||||||
|---|---|---|---|---|---|---|
| Maximum Power (Pm) | Unit | 437 | 441 | 445 | 449 | 453 |
| Maximum Power Voltage (Vm) | V | 41.54 | 41.72 | 41.90 | 42.08 | 42.26 |
| Maximum Power Current (Im) | A | 10.52 | 10.57 | 10.62 | 10.67 | 10.72 |
| Open Circuit Voltage (Voc) | V | 49.73 | 49.93 | 50.13 | 50.33 | 50.52 |
| Short Circuit Current (Isc) | A | 10.91 | 11.96 | 11.01 | 11.06 | 11.11 |
📦

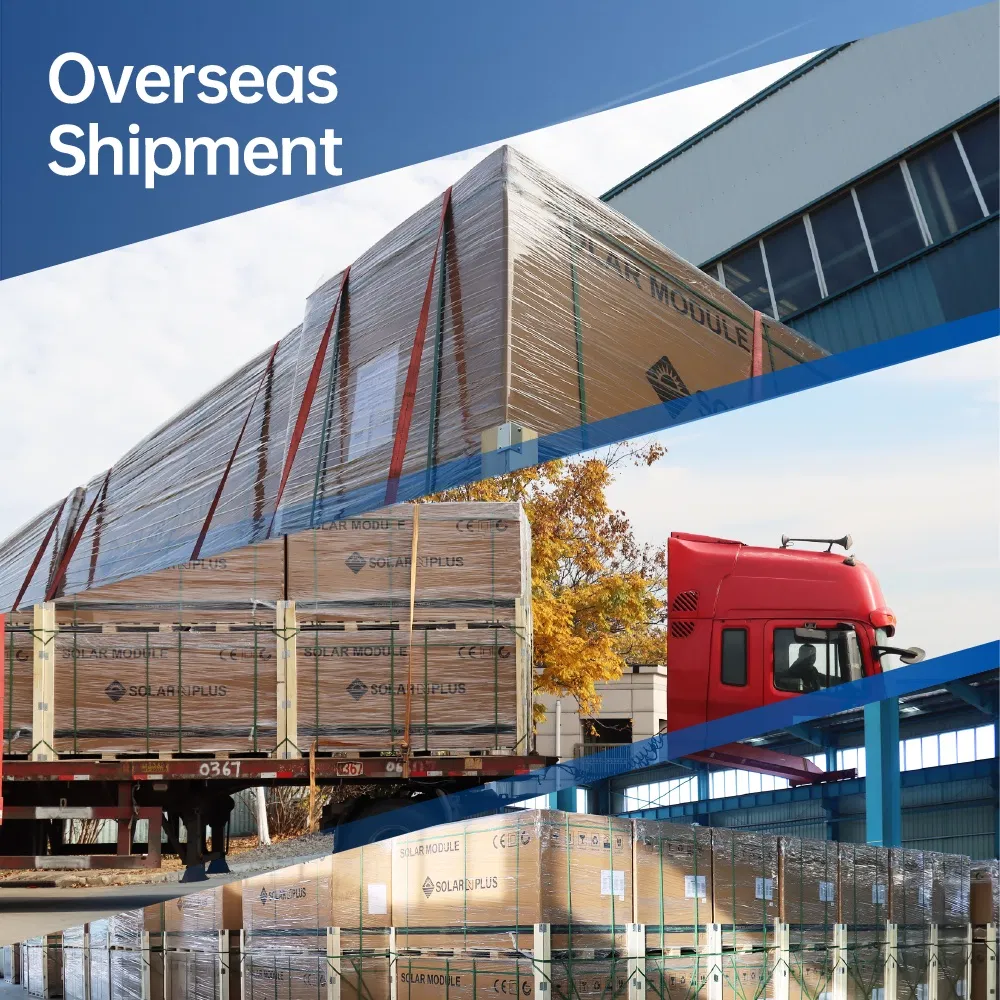

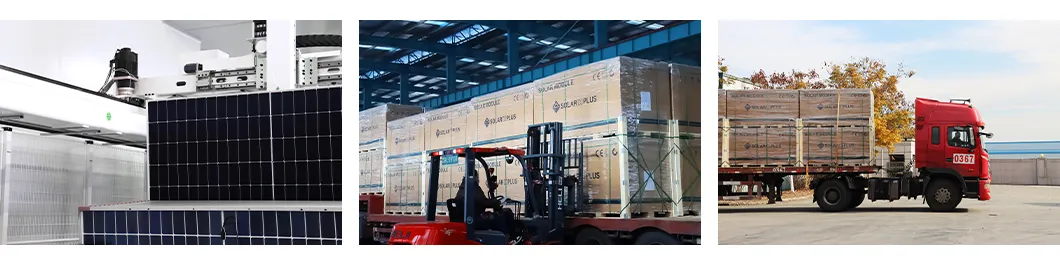

Packaging & Shipping
| Container Type | 40'HC |
| Pieces per Pallet | 36 pcs |
| Packaging Box Size | 2335×1145×1260mm |
| Pieces per Container | 720 pcs |
| Gross Weight (Package) | 24440.00kg |
🏭

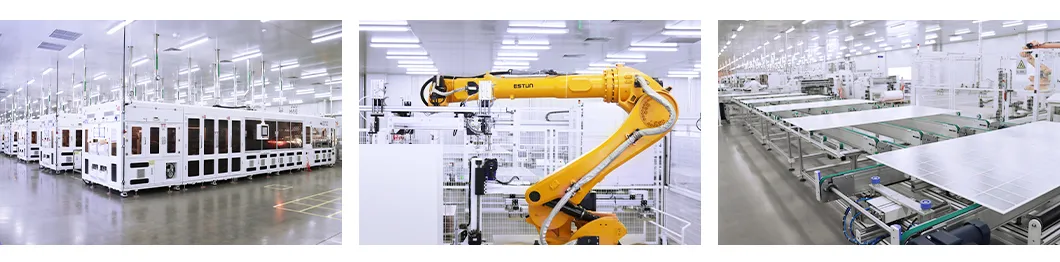

Intelligent Manufactory
🏗️

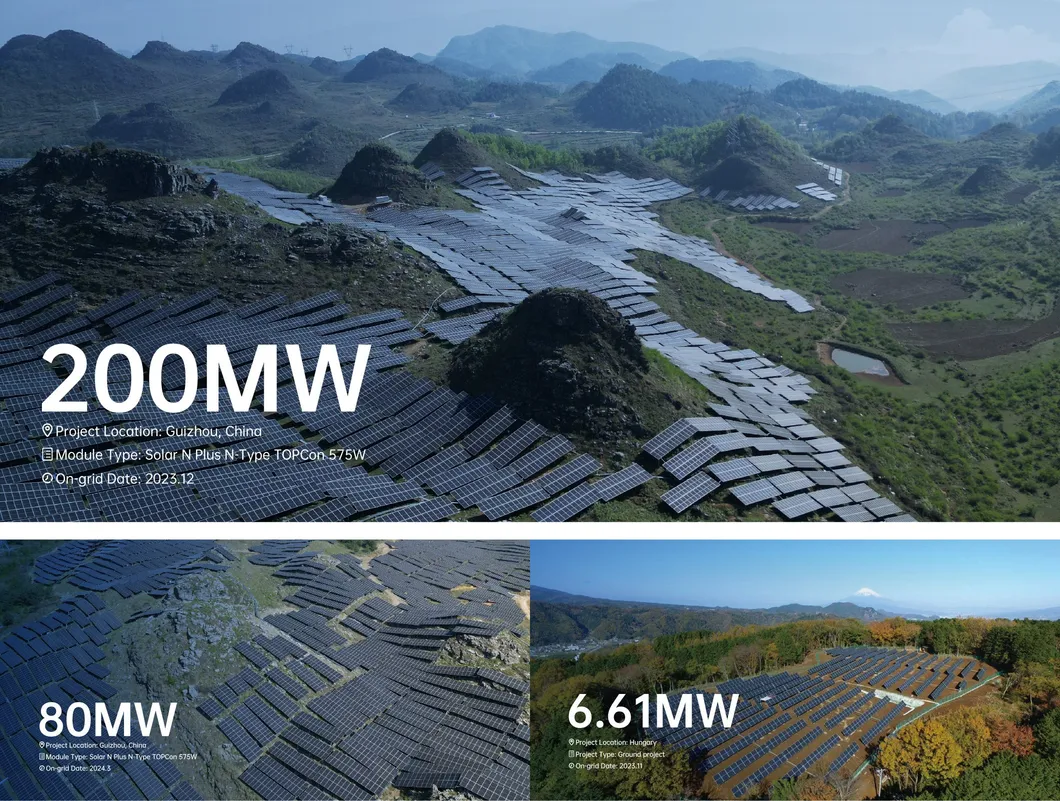

Project Reference
❓
Frequently Asked Questions
What is the maximum power output of these bifacial TOPCon modules?
The 144 series modules offer a power output ranging from 580W up to a maximum of 600W.
What is the highest efficiency rating for this product?
The maximum module efficiency reaches up to 23.2% under Standard Test Conditions (STC).
What kind of warranties are provided for these solar panels?
The products come with a 15-year product warranty and a 30-year power warranty for long-term reliability.
How many panels can fit in a standard 40'HC shipping container?
A 40'HC container can accommodate 720 pieces, with 36 pieces packed per pallet.
What certifications do these modules hold?
They are certified by ISO, CE, TUV, IEC, Bis, Jepa, Sec, Inmentro, and CQC, meeting international standards for safety and quality.
What is the mechanical load capacity of the panels?
The modules are designed to withstand mechanical loads of up to 5400PA on the front and 2400PA on the back.
