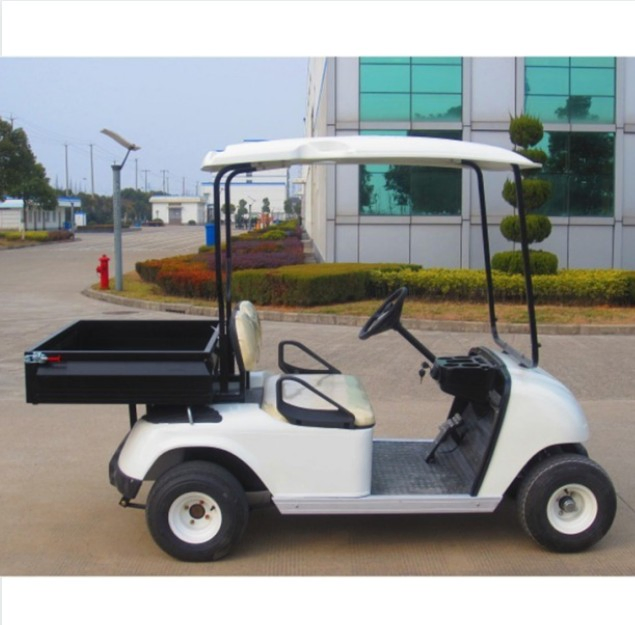

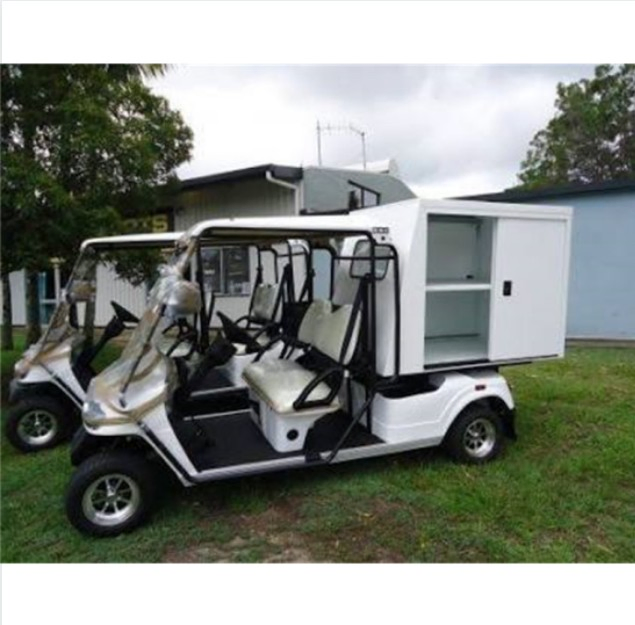

2 Seats Electric Golf Cart Foldable Auto Follow Golf Electric Trolley Hunting Cart
Product Description
Basic Info.
Model NO.DZ-C2
Power2200kw
Power FuelElectric
Maximum Speed20-30 km/h
Gradeability20-30%
Suitable forGolf Course
CertificationCE, ISO
Voltage of Battery36V
ColorWhite
OriginChina
Production Capacity500units/Month
Product Description

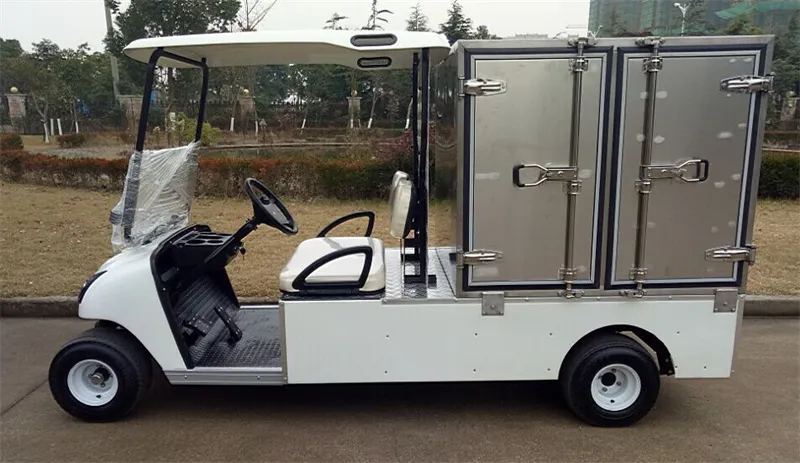

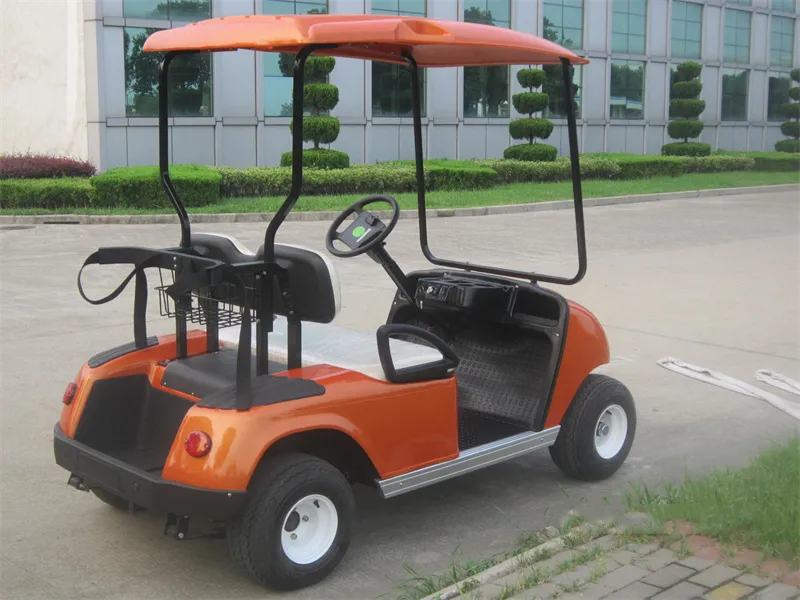

2 Seats Electric Golf Cart Foldable Auto Follow Golf Electric Trolley Hunting Cart
Features & Benefits:
- ✔1. Good aftersale-service, as most parts are manufactured by ourselves;
- ✔2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;
- ✔3. Import main parts: US battery (From USA) and Delta-Q chargers(From Canada), Curtis Controller(From USA);
- ✔4. Brake system: Rear wheel Mechanical Drum Brake
- ✔5. Option parts: Full enclosure weather curtains; Split Windshield; 10'' Alloy rim and tyre; Caddycooler; Rear & Side mirror; Different colors and option parts;
- ✔6. Good hill climbing ability, the system allows you to customize the car to fit your course;
- ✔7. Smart steering system, easy to make forward and backward;
- ✔8. Good climbing ablity and can park easily on Hills;
- ✔9. Can be easily to be modified to Utility carts.
Main Technical Parameter:
| Drive Type | 4*2 Rear-wheel drive |
| Rated capacity (including driver) | 2 Persons |
| Dimensions(L*W*H) | 2600*1180*1800mm |
| Wheel base | 1670mm |
| Front / rear track | 870/970mm |
| Curb weight | 490kgs |
| Maximum load | 360kgs |
| Minimum turning radius | 3m |
| Minimum ground clearance | 100mm |
| Maximum vehicle speed | 24km/h |
| Maximum grade ability | 30% |
| Braking distance | ≤4m |
| Charging time | 8-12H |
| Driving range on one charge | 80km |
| Battery | 6V216AH*6 or 8V170AH*6 |
| Power of Motor | 36V2.2KW or 48V3KW |
| Controller | American Curtis Electronics Controller 1266-5201 DC275A/48V |
| Accelerator | Adjustable Inductive Accelerator Continuously Variable Speed System |
| Charger | Full Automatic Efficiency Pulse Charger |
| Steering | Self Compensating "Rack & Pinion" Steering |
| QTY Per Container | 8pcs/20GP, 20pcs/40GP |
Frequently Asked Questions
Q1: What is the maximum speed and driving range of this electric golf cart?
The cart can reach a maximum speed of 24km/h and offers a driving range of approximately 80km on a single full charge.
Q2: How long does it take to fully charge the battery?
The charging time for a full battery cycle is between 8 to 12 hours using the provided automatic pulse charger.
Q3: Can this golf cart handle steep hills?
Yes, it features a 30% maximum gradeability, making it very capable for climbing and parking on hills common in golf courses.
Q4: What are the main electronic components used?
The cart utilizes high-quality imported components including an American Curtis Electronics Controller and can be equipped with US batteries and Delta-Q chargers.
Q5: Is this cart certified for international standards?
Yes, the cart is CE and ISO certified, and main parts also pass CE, UL, and SAA requirements.
Q6: How many people can the DZ-C2 model accommodate?
This model is specifically designed for 2 persons, including the driver, with a rated load capacity of 360kgs.
